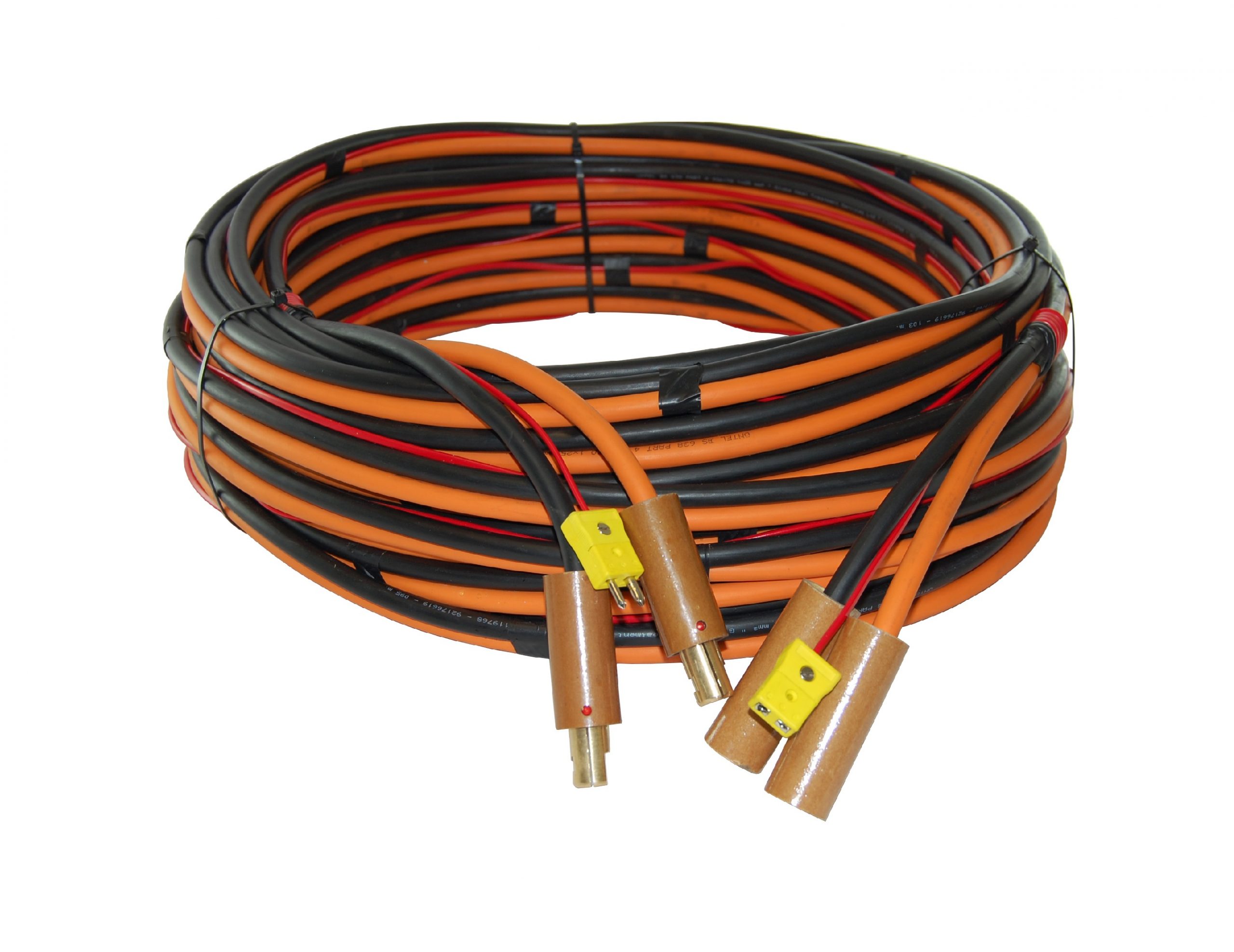

Triple cable set, 35mm cable, current rating 225A, 30m long

PRODUCT CODE:GHT6005

The triple cable set consists of two 30m lengths of heat and oil resistant and flame retardant (HOFR), double insulated 35mm copper cable and one 30 length of compensating cable. The end of the cables that connect to a heat treatment unit are fitted with 300A male twistlock connectors on the two HOFR cables and a thermocouple plug on the compensating cable. The other end of the cables, that connect to the splitter cables and thermocouple at the workpiece being heat treated, are fitted with 300A female twistlock connectors on the two HOFR cables and a thermocouple socket on the compensating cable.

Application

For use with heat treatment units to provide power and thermocouple connection to a heater control zone of up to 5 heaters
