Provides 3.6kW of heating power for pre and post weld heat treatments. typically used in the USA and Canada with our 80V output heat treatment transformers and centres. Details and prices of our 80V heat treatment transformers are available upon request

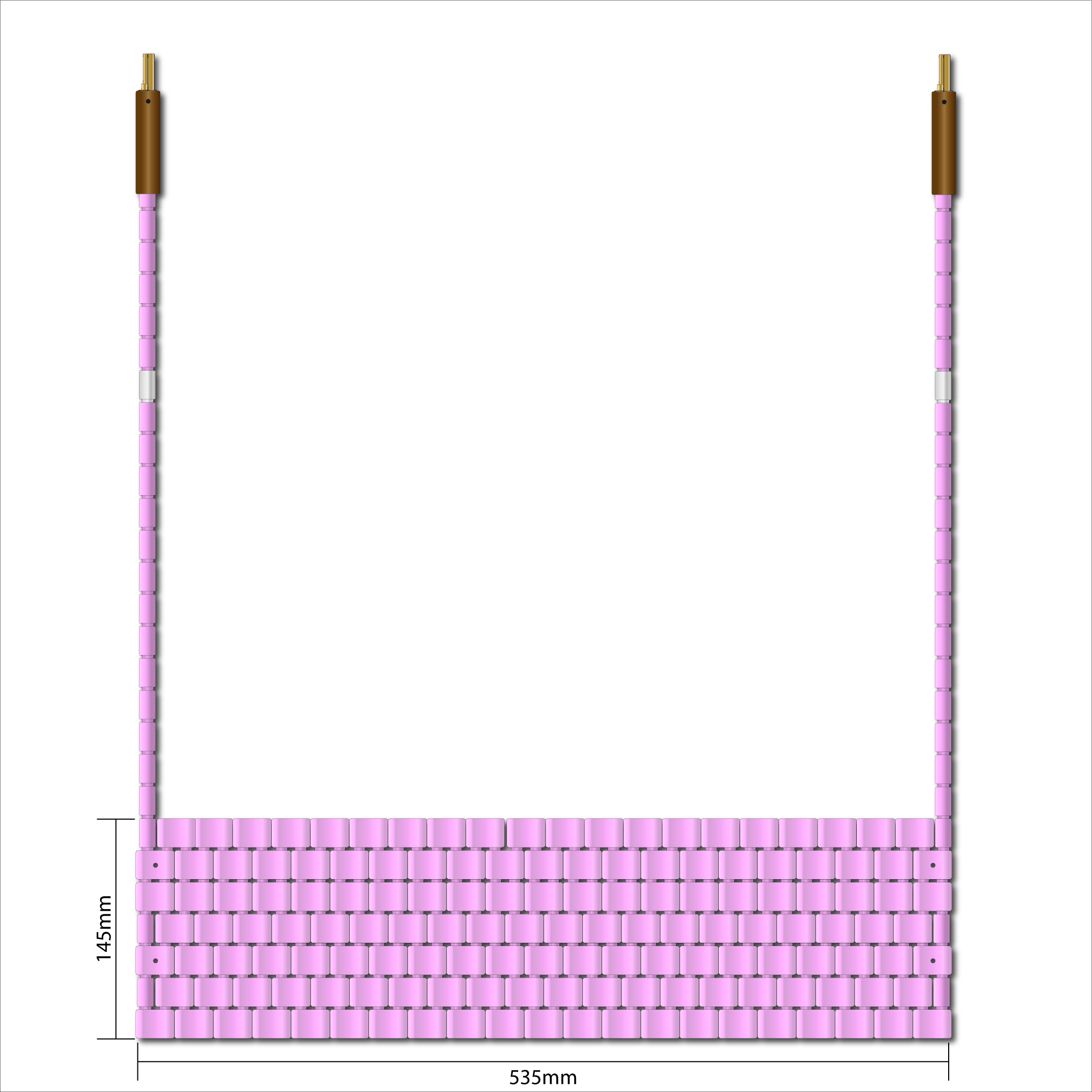

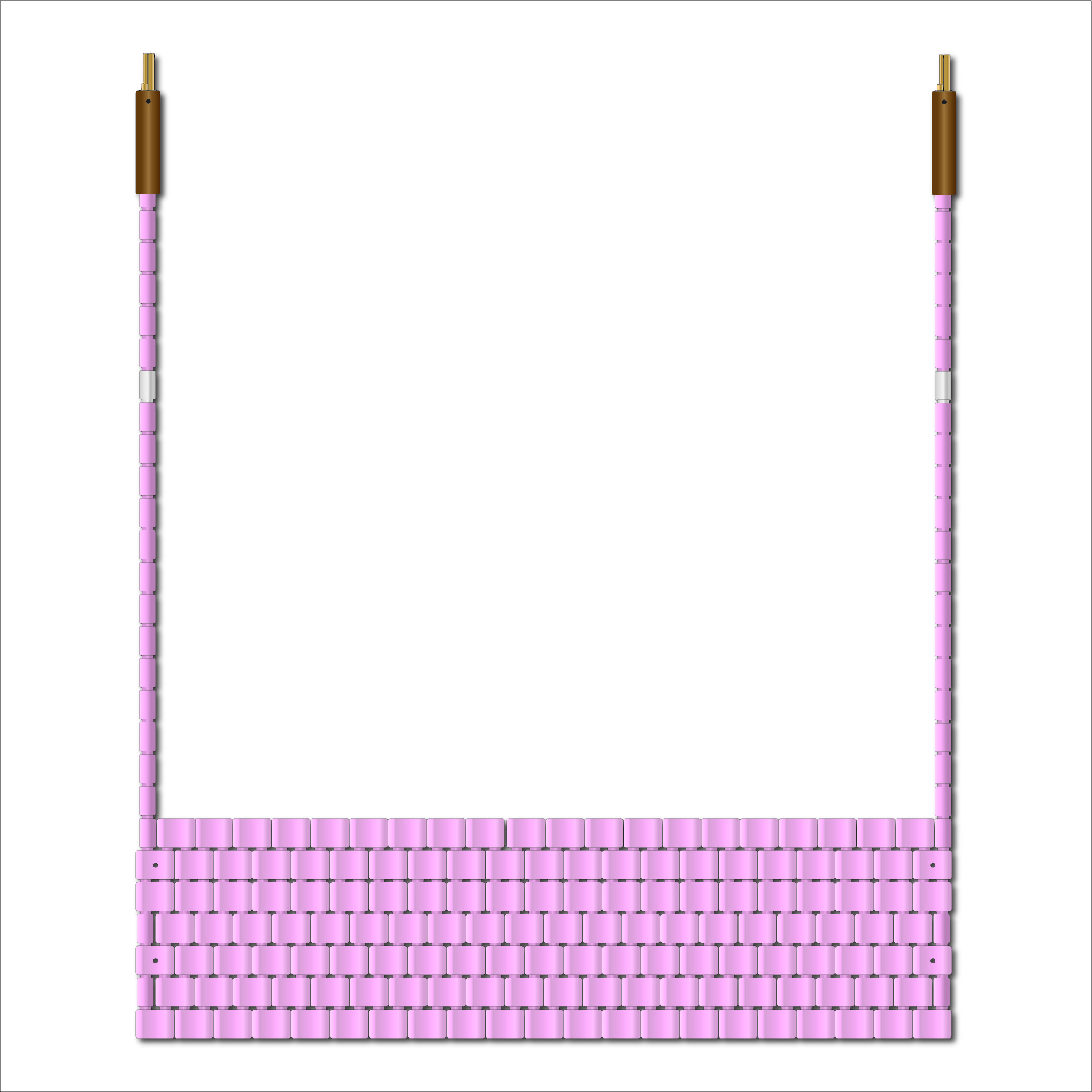

Specification: 21 bead wide, 7 bead long ceramic pad heater, 3.6 kW, 45A, 80V

The 80 Volt ceramic heater element is manufactured from high grade nickel chrome (NiCr) 80/20 19 stranded wire. They are insulated with durable ceramic interlocking beads made of sintered alumina oxide. Each ceramic heater has a nickel 212 welded coil tail which enables the technician safe and easy access to the heater when in use. A white marker bead denotes the start of the cold tail. A twistlock connector complete with insulated sleeve is attached to the end of each tail to enable the ceramic heater to be connected to the 3 way splitter.
