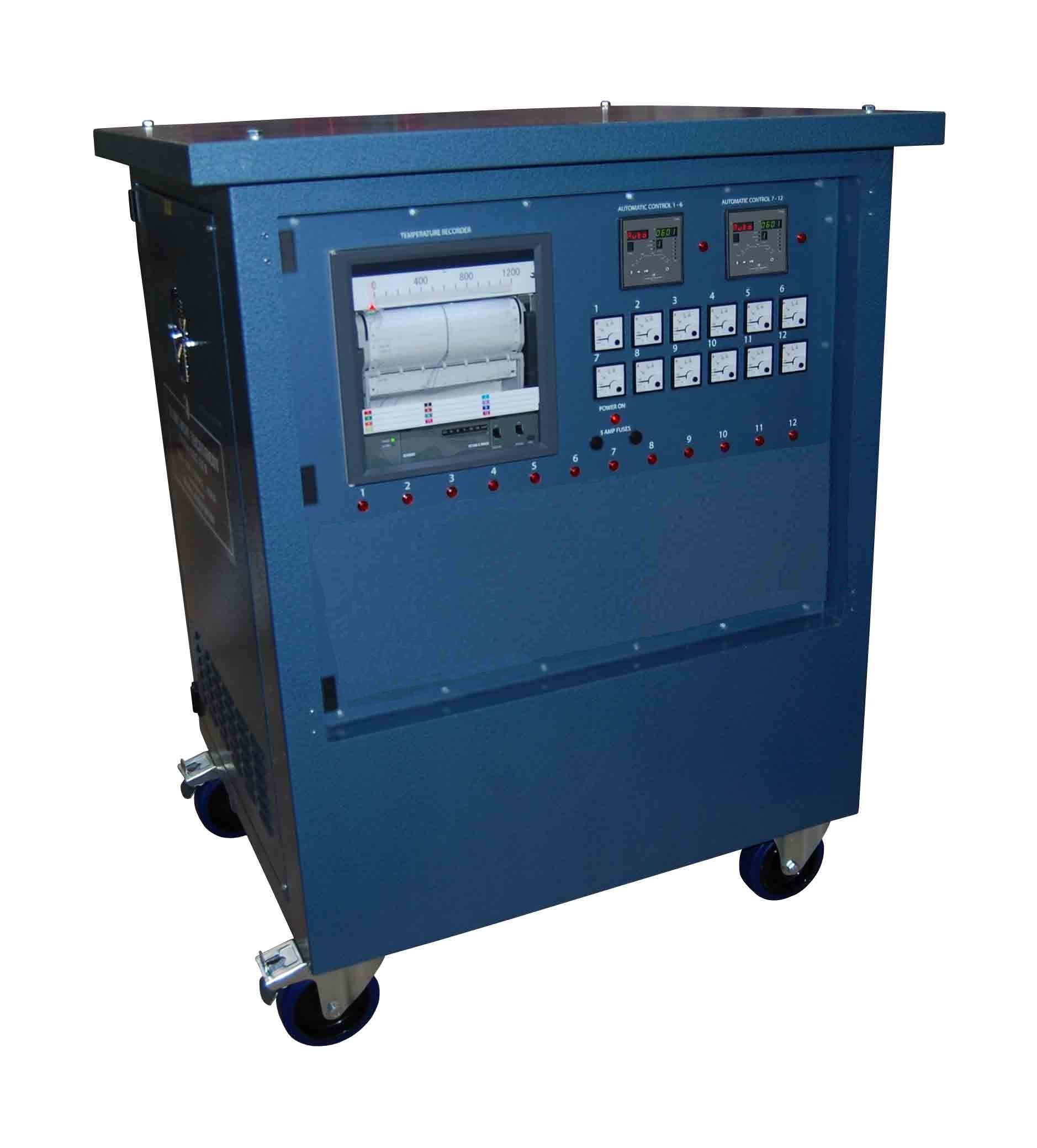

100kVA Twelve Way Heat Treatment Centre with two Six Channel P183 Programmers, a Chino 12 Point Recorder and Twelve Ammeters


This 100kVA, twelve channel unit provides twelve output channels of power and temperature control of up to thirty six, 65V, 45A, 2.7kW ceramic heating elements for preheating or post weld heat treatment of pipe or fabrication welds or other fabrications where controlled heating is required. The heat treatment process is controlled by two built in P183 six channel programmers for twelve channel program, automatic control. Recording is provided by a 12 channel, Chino EH3127-001 temperature chart recorder


The unit has been designed and manufactured for use on site in a variety of global industrial environments or inside a workshop. The chassis trolley design enables the unit to be easily moved around in typical site conditions.
